7. Class signature

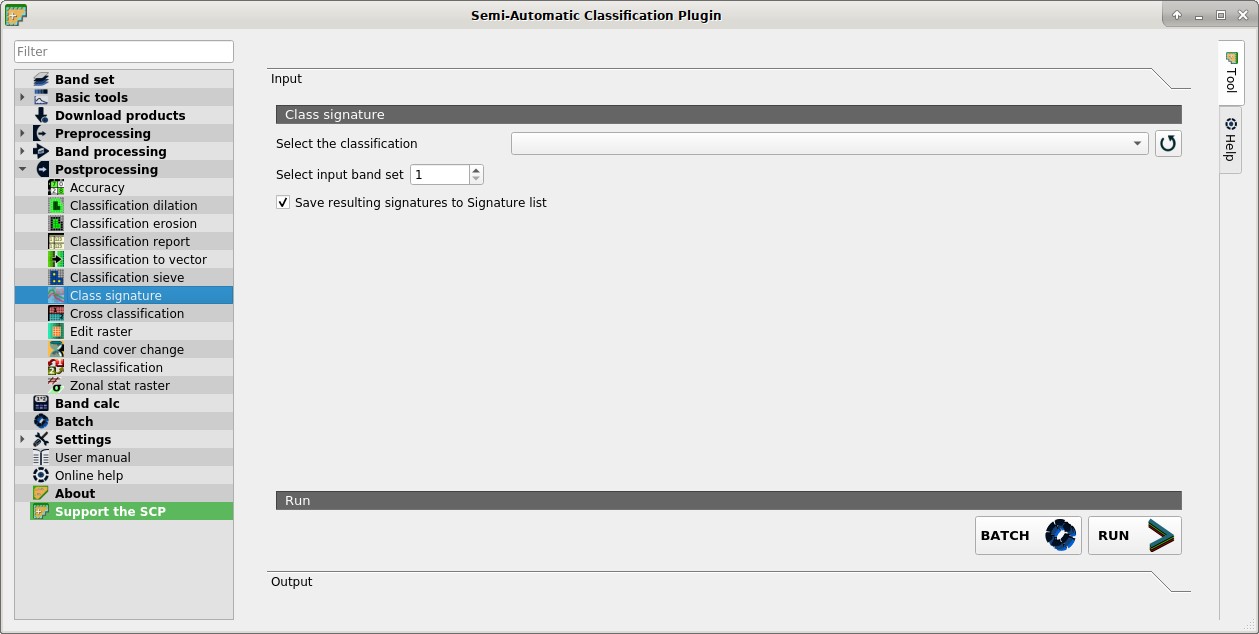

_images/class_signature_tab.jpg

class_signature Class signature

This tab allows for the calculation of the mean spectral signature of each class in a classification using a Band set.

  • Select the classification input_list: select a classification raster (already loaded in QGIS);

  • reload: refresh layer list;

  • Select input band set input_number: select the input Band set for spectral signature calculation;

  • checkbox Save resulting signatures to Signature list: if checked, save the resulting spectral signatures to ROI & Signature list;

  • BATCH batch_tool: add this function to the Batch;

  • RUN run: choose the output destination and start the conversion;
